Hardware
This section is necessary to obtain information about the status of the connection to the CAN network, the supply voltage of the device, the current levels at the outputs of the connection of IP cameras, the temperature in the housing of the device, GNSS status, the version of an OS and tracker and ignition state.

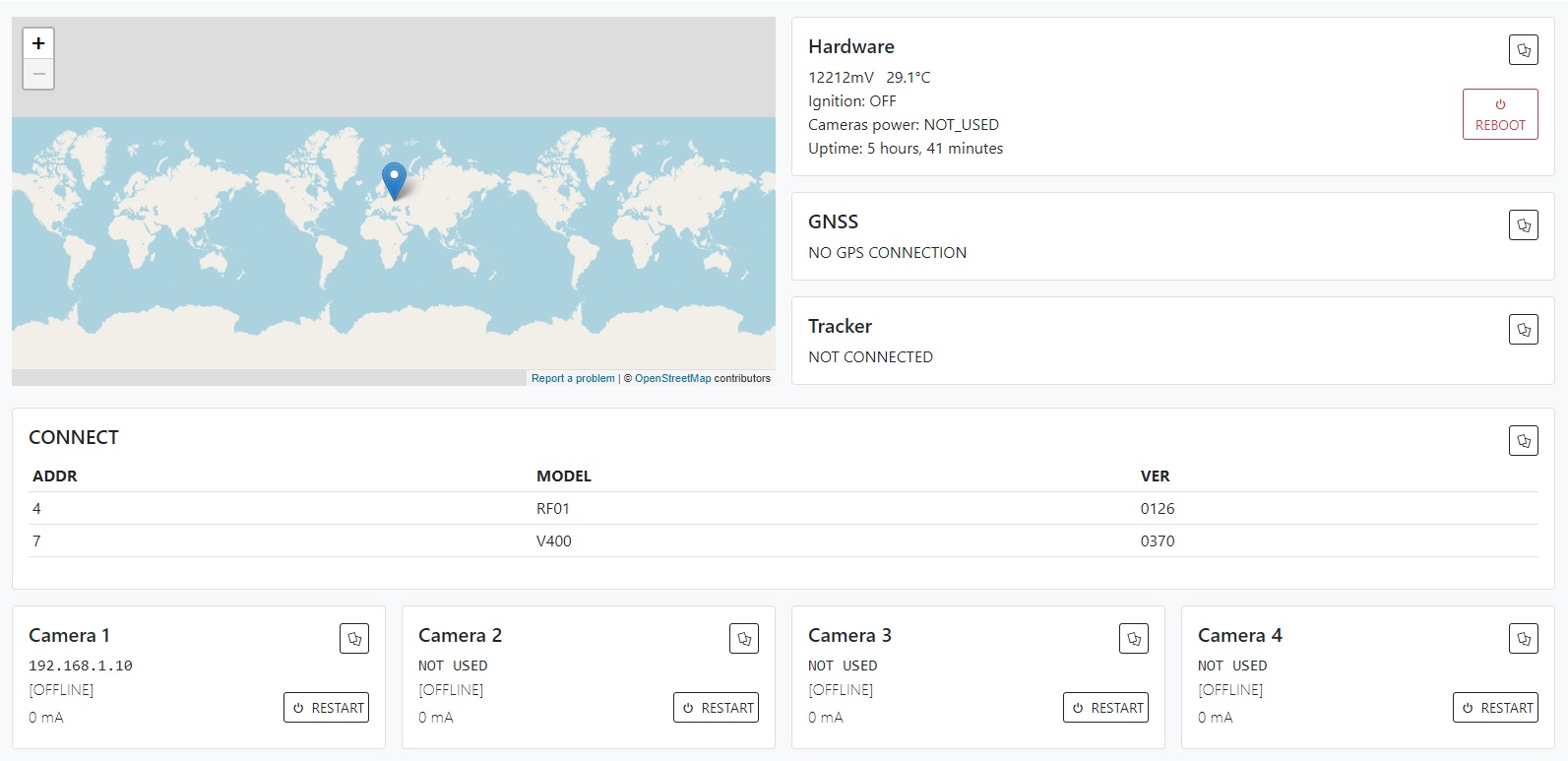

Figure 1 – Chapter HARDWARE
Table 1 – Hardware information parameters description
| Parameter | Parameter description |
|---|---|
| CONNECT | CONNECT devices connection status |
| Hardware | The supply voltage of the device and the temperature in the device housing, the status of ignition, power supplying of the cameras and uptime of the device |
| GNSS | Global navigation system connection status |
| Tracker | Status of connection to the monitoring server |
| Camera 1 | status and current consumed by the camera 1 |
| Camera 2 | status and current consumed by the camera 2 |
| Camera 3 | status and current consumed by the camera 3 |
| Camera 4 | status and current consumed by the camera 4 |
